Sinotruk electrically controlled common-rail Euro Ⅲ engine



WD615 series:220PS(WD615.90)and 240PS(WD615.91)engine

WD615 series is developed by China National Heavy Duty Truck Group and Ricardo Company (Englang).It adopts electrically controlled high pressure common-rail oil injection system,which matches up to the new supercharger and fuel system.new combination of piston, piston ring and cylinder liner, connecting rod bearing shell and mainshaft shell.

Features:High reliability, low fuel consumption and low displacement.



Adopt YUCHAL engine

Adopt YUCHAL engine, model YC6J190-30,Euro Ⅲ standard,mainly for the velicles of 190 horsepower.

Economy: This model engine can save fuel 10% than the other kinds, super power reserve capacity make the fuel-saving effect of the engine more outstanding when the whole vehicle running overload .

High reliablity and Permanence: Large torque ,premium material ,advanced manufacturing processes; The most components are of high commonality, so the maintenance is very convenient.

The cab adopts Germany MAN-L2000 cab with luxury and beautiful inner trimming ;Tht visual field of front windscreen and side glass is widened;more light can enter into the cab.

Small front face area of the cab can reduce the 16%-23%windage and 0.9%-1.2

%  power consumption.

Advantage of Huanghe Commander series:

Huanghe Commander series ,which adopts Germany MAN-L2000cab,is developed on the base of absorbing proven technique home and abroad.

Reasonable matching and advanced technolopy：

Depending on production experience and advanced design of Sinotruk the key component assemblies is of best matching and high reliability.

Work reliably and operate conveniently:

Operating and driving device adopt the asembly of high qulity in china and relize systematization and multiline variety allocation, all these can make sure the work reliably and operate conveniently.

Light dead weight

The series is of light cab and high-strength alloy material of chassis ,so its dead weight 600-900 kg lighter than the others, and this can increase loading capacity effectively.

Good appearance and comfortable:

The whole vehicle of reasonable arrangement, cab is of good appearance and comfortable seat, both present the development trend of the Medium vehicle.

High specific output:

High specific output and seriation and multi-variety configuration can satisfy all kinds of domestic working condition, such as hot area, cold area, sand and muddy area etc.

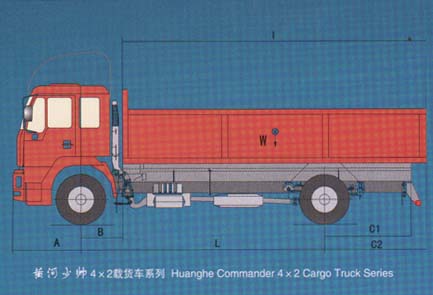

Huanghe Commander 4*2Cargo Truck Series



model：ZZ1124G4215C1

internal model：ZZ1124G4215C1/G2W

original model：L3/190/O42/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6（F6）

driving axle：EQ1094

front axle：EQ1094

stering wheel：A01

tyre：9

body dimension

model/tonnage/length*height：ZZ1124G4215C1/G2W/7.36/Chassis / 6.39/5300*600/Truck / ZZ5124CLXG4215C1/G2W/Grid positions/ ZZ5124XXYG4215C1/G2W/Van



model：ZZ1124G4715C1

internal model：ZZ1124G4715C1/G2W

original model：L3/190/O47/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6（F6）

driving axle：EQ1094

front axle：EQ1094

stering wheel：A01

tyre：9

body dimension

model/tonnage/length*height：ZZ1124G4715C1/G2W/7.31/Chassis  / 6.22/6100*600/Truck / ZZ5124CLXG4715C1/G2W/Van / ZZ5124XXYG4715C1/G2W/van



model：ZZ1124G5315C1

internal model：ZZ1124G5315C1/G2W

original model：L3/190/N53/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6（F6）

driving axle：EQ1094

front axle：EQ1094

stering wheel：A01

tyre：9

body dimension

model/tonnage/length*height：ZZ1124G5315C1/G2W/7.26/Chassis  / 6.15/6630*600/Truck/ ZZ5124CLXG5315C1/G2W/Van / ZZ5124XXYG5315C1/G2W/Van



model：ZZ1124G5415C1

internal model：ZZ1124G5415C1/G2W

original model：L3/190/N54/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6（F6）

driving axle：EQ1094

front axle：EQ1094

stering wheel：A01

tyre：9

body dimension

model/tonnage/length*height：ZZ1124G5415C1/G2W/7.26/Chassis  / 6.15/6630*600/Truck



model：ZZ5124G6015C(vanChassis)

internal model：ZZ5124G6015C/G2W

original model：L3/190/ N60/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6（F6）

driving axle：EQ1094

front axle：EQ1094

stering wheel：A01

tyre：9

body dimension

model/tonnage/length*height：ZZ5124G6015C/G2W/7.14/Chassis  / ZZ5124XXYG6015C/G2W 4.90/7600*2400/Van

model：ZZ1164G4715C1

internal model：ZZ1164G4715C1/G2W

original model：L3/190/O47/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6

driving axle：HW1249A

front axle：EQ153

stering wheel：A01

tyre：10

body dimension

model/tonnage/length*height：ZZ1164G4715C1/G2W/10.47/Chassis  /8.81/6100*600/Truck

ZZ5164CLXG4715C1/G2W/Grid positions/ ZZ5164XXYG4715C1/G2W/Van



model：ZZ1164H4515C1

internal model：ZZ1164H4515C1/J2W

original model：L3/220/O45/4*2W

basic configuration：

cab：L2000 W

engine cab：6J220-30

transmission：DC6

driving axle：HW1249A(HW1249A)

front axle：JW07(EQ153)

stering wheel：JL80Z

tyre：11(10)

body dimension

model/tonnage/length*height：ZZ1164H4515C1/J2W/9.82/Chassis



model：ZZ5164G6015C

internal model：ZZ5164G6015C/G2W

original model：L3/190/N60/4*2W

basic configuration：

cab：L2000 W

engine cab：6J190-30

transmission：DC6

driving axle：HW1249A

front axle：EQ153

stering wheel：A01

tyre：10

body dimension

model/tonnage/length*height：ZZ5164G6015C /G2W/10.185/VanChassis / ZZ5164XYZG6015C/G2W/7.90/7600*2400/Post / ZZ5164XXYG6015C/G2W/Van



model：ZZ5164G6015C

internal model：ZZ5164G6015C /J2W

original model：L3/220/N60/4*2W

basic configuration：

cab：L2000 W

engine cab：6J220-30(SC8DK230Q3)

transmission：DC6

driving axle：EQ153

front axle：EQ153

stering wheel：A01

tyre：10

body dimension

model/tonnage/length*height：ZZ5164K6015C/J2W /9.335/Chassis  /  ZZ5164XYZK6015C/J2W/7.005/7600*2400/Post/ ZZ5164XXYK6015C/J2W/Van
